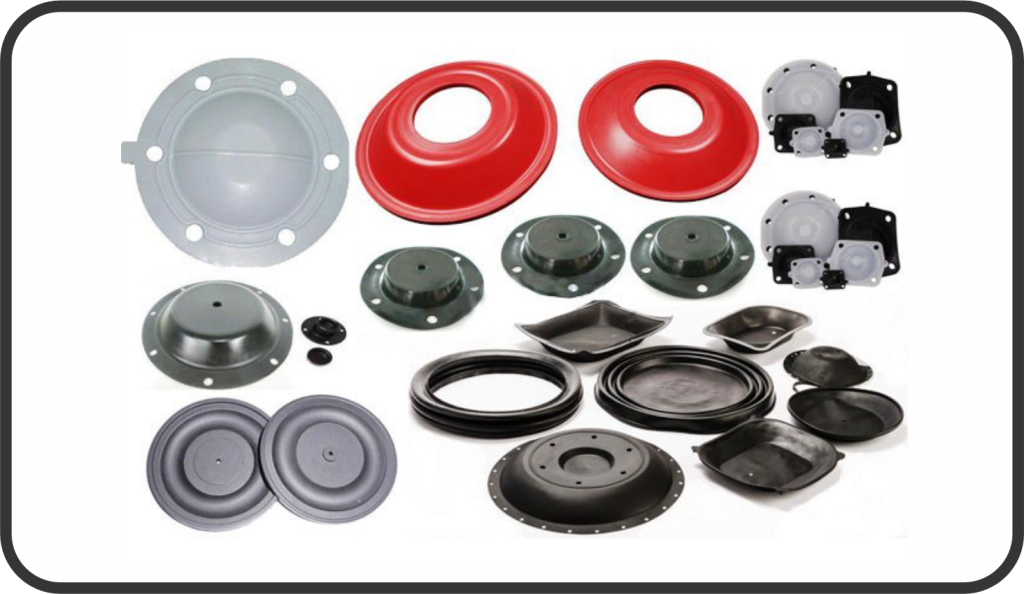

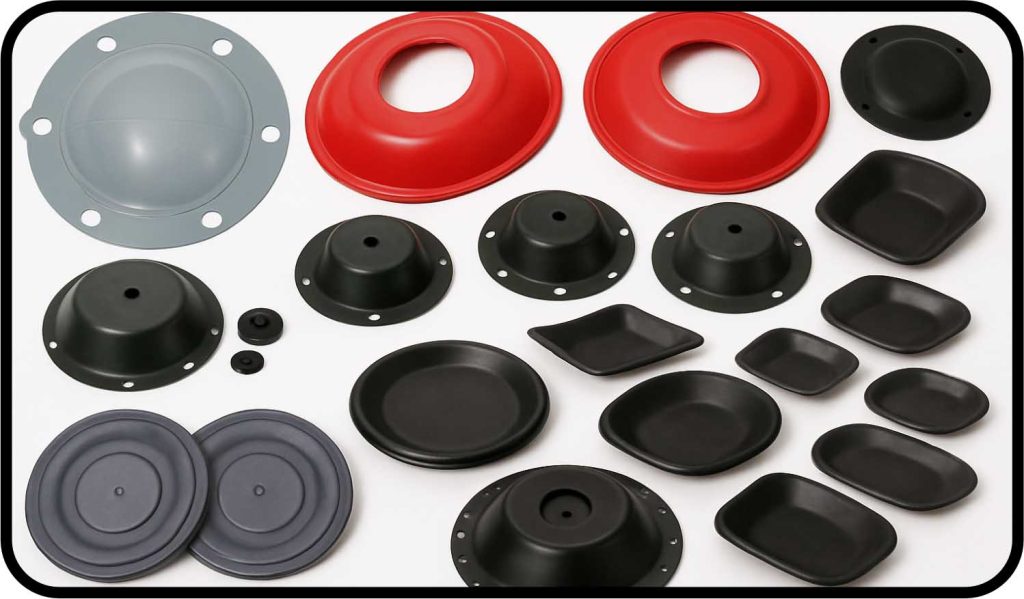

A rubber diaphragm is a flexible, thin membrane typically made of rubber or elastomeric materials such as silicone or neoprene. It is used to create a barrier or seal between two components while allowing for the transfer of pressure or motion between them. Here are the key details about rubber diaphragms:

Material: Rubber diaphragms are commonly made from various elastomeric materials such as natural rubber, synthetic rubber (like neoprene, nitrile, or silicone), and fluorocarbon elastomers (such as Viton). The choice of material depends on factors like chemical resistance, temperature resistance, flexibility, and durability.

Design: Rubber diaphragms are designed to flex and deform when subjected to pressure or differential forces. They can be flat or molded into specific shapes depending on the application requirements. The design may include reinforcement layers or fabric inserts to enhance strength and durability.

Function: Rubber diaphragms serve various functions across different industries and applications. Some common uses include:

Actuators: They convert fluid or air pressure into mechanical motion, commonly found in pneumatic and hydraulic systems.
Seals: They provide a flexible barrier between two components, preventing leakage or contamination in pumps, valves, regulators, and other fluid-handling equipment.
Sensors: In certain applications, diaphragms are used as sensing elements to measure pressure, force, or displacement.
Applications:

Automotive: Rubber diaphragms are used in automotive systems such as fuel pumps, brake boosters, EGR valves, and vacuum actuators.
Industrial: They find applications in industrial equipment like pumps, valves, pressure regulators, and control systems.
Medical: In medical devices, diaphragms are used in pumps, respirators, blood pressure monitoring equipment, and fluid handling systems.
Aerospace: Rubber diaphragms are utilized in aircraft systems including fuel controls, hydraulic systems, and pneumatic actuators.
Advantages:

Flexibility: Rubber diaphragms can deform and flex without losing their integrity, making them suitable for various dynamic applications.
Compatibility: They can withstand a wide range of temperatures, pressures, and chemical exposures depending on the material composition.
Reliability: Properly designed and manufactured diaphragms offer consistent performance and long service life.
Manufacturing Process: Rubber diaphragms are typically manufactured using processes such as molding, extrusion, or die cutting. Molding involves shaping the rubber material under heat and pressure to achieve the desired form. Extrusion is used for creating continuous profiles, while die cutting is employed for producing custom shapes from sheets of rubber material.

Overall, rubber diaphragms play a crucial role in numerous mechanical, hydraulic, pneumatic, and fluid-handling systems, providing reliable sealing and actuation capabilities across various industries.
